Structured Cabling: The Invisible Foundation of Your Office Technology

Behind every reliable office network is a system most people never see. Structured cabling runs through walls, ceilings, and network racks, quietly supporting everything from internet access to cloud applications, VoIP systems, and security infrastructure. When this foundation is designed correctly, it creates a stable, scalable environment that supports business growth without disruption. When it is not, even small changes can lead to downtime, confusion, and costly troubleshooting. Automation Concepts recognizes that structured cabling is not just wiring—it is the framework that determines how efficiently technology performs day to day.

Understanding how structured cabling works—from rack organization and cable labeling to backbone design and long-term maintenance—helps explain why it plays such a central role in modern offices. This article explores what structured cabling looks like behind the scenes, how organized racks support scalability, why cable management reduces troubleshooting time, when to use copper versus fiber, and the standards that keep everything running efficiently. For a closer look at how systems are implemented in real environments, explore structured cabling and how it supports business infrastructure from the ground up.

What Structured Cabling Looks Like Behind the Walls and in Network Racks

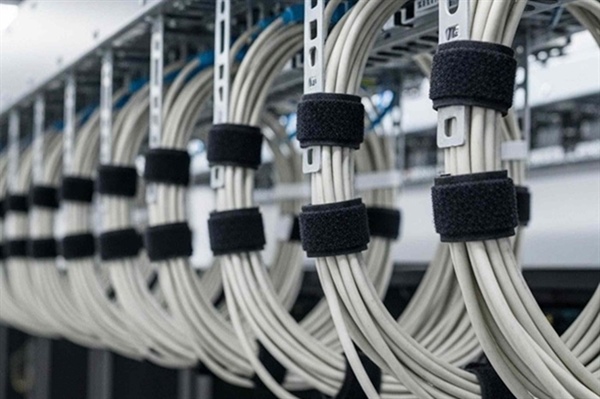

Structured cabling systems follow strict physical and organizational standards that define how cables are routed, terminated, and documented. Behind walls and ceilings, horizontal cabling—typically Cat6—runs from telecommunications rooms to workstations in consistent pathways using cable trays, conduits, or raceways. These pathways are designed to minimize interference, maintain bend radius requirements, and ensure consistent signal integrity. Each cable terminates at a patch panel within a rack, creating a centralized point of control for the entire network.

Inside network racks, organization is critical. Patch panels are arranged logically, often grouped by floor, department, or function, and paired with switches directly below them. Horizontal and vertical cable managers guide patch cords cleanly between ports, preventing tangling and airflow obstruction. Labeling standards such as ANSI/TIA-606 assign unique identifiers to every cable, port, and pathway, ensuring that each connection can be traced without ambiguity. Fiber connections follow similar principles but use specialized enclosures and splice trays to protect delicate strands.

This structure matters from day one because it establishes consistency. A properly installed system allows technicians to identify any connection point quickly without guesswork. Without this level of organization, even simple changes can require tracing cables manually, increasing the risk of accidental disconnections. A well-designed structured cabling system eliminates that uncertainty and creates a predictable environment for long-term operation.

The Role of Organized Network Racks in Scalability and Growth

Network scalability depends heavily on how racks and infrastructure are designed at the beginning of a project. Organized racks provide clear separation between core, distribution, and access layers, allowing new equipment to be added without disrupting existing connections. Proper spacing, power distribution, and airflow management ensure that additional switches, patch panels, and servers can be integrated without exceeding capacity limits or creating thermal issues.

Structured pathways also support expansion. When conduits and cable trays are sized correctly, new cabling can be pulled without removing or disturbing existing runs. This is especially important in environments that anticipate growth, such as expanding offices or facilities adding new departments. Modular rack layouts allow IT teams to extend systems incrementally rather than redesigning them entirely.

Scalability is not just about adding more cables; it is about maintaining order as complexity increases. Without organized racks, growth leads to congestion, making future upgrades more difficult. A structured approach preserves clarity, ensuring that each addition integrates seamlessly into the existing framework rather than creating operational friction.

Reducing IT Troubleshooting Time Through Effective Cable Management

Efficient troubleshooting relies on visibility and traceability. In structured cabling systems, each cable is labeled at both ends, and patch panel ports correspond to documented layouts. This allows IT teams to isolate faults quickly by identifying the exact pathway a signal follows. When a device loses connectivity, technicians can trace the issue through documented connections instead of physically inspecting multiple cables.

Logical patching plays a key role in reducing downtime. When patch cords are routed cleanly through cable managers and follow consistent paths, it becomes easier to identify incorrect or loose connections. Disorganized environments often result in “cable spaghetti,” where overlapping and unlabeled cables obscure visibility. In those cases, troubleshooting becomes a trial-and-error process that increases downtime and operational risk.

Clean routing also prevents accidental disruptions. Properly secured cables are less likely to be disconnected during maintenance or upgrades. This reduces the chance of human error and ensures that changes can be made confidently. Structured cabling transforms troubleshooting from a reactive process into a controlled and predictable workflow.

Cat6 vs. Fiber in Office Backbone and Horizontal Cabling Design

Cat6 and fiber optic cabling serve distinct roles within structured cabling systems. Cat6 is typically used for horizontal cabling, connecting workstations, phones, and access points to network switches. It supports speeds up to 10 Gbps over shorter distances and provides a cost-effective solution for most endpoint connections. Its installation is straightforward, and it integrates easily with standard networking equipment.

Fiber optic cabling, by contrast, is used for backbone connections between telecommunications rooms, floors, or buildings. Fiber supports significantly higher bandwidth and longer distances without signal degradation. It is immune to electromagnetic interference, making it ideal for environments with high electrical noise. Modern backbone designs often rely on multimode or single-mode fiber to support future bandwidth demands.

Many office environments use hybrid deployments that combine both technologies. Cat6 handles endpoint connectivity, while fiber provides high-capacity links between network segments. This approach balances cost and performance while preparing infrastructure for future upgrades. Selecting the right combination depends on distance requirements, expected data loads, and long-term scalability goals.

Best Practices for Maintaining a Clean and Efficient Cabling Environment

Maintaining structured cabling systems requires consistent adherence to documentation and labeling standards. Every cable, port, and pathway should be recorded in a centralized system that reflects the physical installation. This documentation allows teams to track changes, plan upgrades, and troubleshoot issues without relying on memory or guesswork.

Color-coding is another widely used practice that improves clarity. Different cable colors can represent network types, departments, or functions, making it easier to identify connections visually. Routine audits help verify that labeling remains accurate and that no unauthorized changes have been made. These audits also identify wear, damage, or congestion that could impact performance over time.

Ongoing maintenance ensures that systems remain efficient as they evolve. This includes replacing damaged cables, reorganizing racks after upgrades, and updating documentation to reflect changes. Organizations that follow these practices maintain consistent performance and avoid the gradual degradation that occurs in unmanaged environments. For more information about implementation and support, visit Automation Concepts.
